Shelling & cutting · Stage 02

Cashew Nut Cutting Machine

Clean, consistent kernel separation

An automatic cashew cutting machine that splits the shell and separates the kernel cleanly, matched to nut size for minimal splits and broken grades.

Request a quote → View specifications

100–1,200kg/hr range

Auto& semi-auto

1-cutshell + kernel

FIG.03 // CUTTING AUTO + SEMI

PLC-controlled · TTQ built

What it does

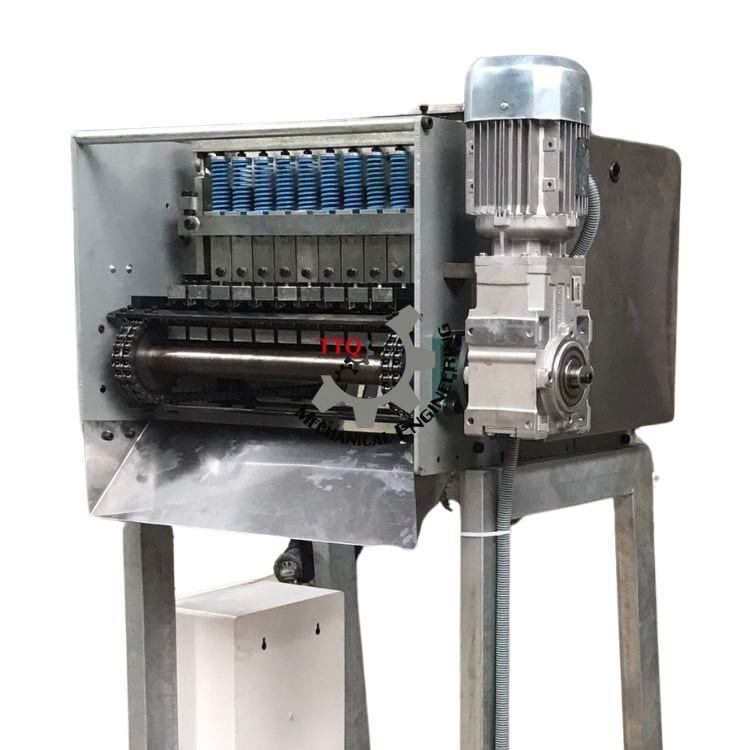

The TTQ Cashew Nut Cutting Machine performs the shell-cutting stage: a size-matched blade pair splits the steamed nut along its seam and separates the kernel from the shell in one action. Available as semi-automatic (operator-fed) and fully automatic units, it delivers clean, repeatable cuts that protect whole-kernel grades. Cutting throughput ranges from about 100 kg/hr per semi-auto station to 1,200 kg/hr on a multi-head automatic machine.

Spec sheet

Technical specifications

Function	Splits shell & separates kernel
Types	Semi-automatic & fully automatic
Throughput	100 kg/hr (semi) to 1,200 kg/hr (auto)
Blade set	Size-matched, hardened & re-sharpenable
Drive	1.5–5.5 kW
Control	Foot-pedal (semi) / PLC (auto)
Build	Steel frame, stainless contact guides

Figures are typical and configurable — we confirm exact specifications against your capacity and grade targets.

Why this machine

Built for yield & uptime

Size-matched blades

Blades indexed to the nut grade give a clean seam cut with minimal splitting.

Protects whole kernels

A one-action cut separates shell and kernel without crushing, holding W-grade yield.

Semi or fully automatic

Start with operator-fed stations and scale to automatic multi-head cutting as volume grows.

Re-sharpenable blades

Hardened blades are re-sharpened and re-indexed, keeping running costs low.

Choose your capacity

Model & capacity comparison

Every model TTQ builds for this stage, side by side. Pick by throughput and footprint — each links straight to a quote.

Cutting / shelling machines — models

Automatic cutters that crack the shell along its seam. More knives/heads = more raw nuts cut per hour at low breakage.

Model	Capacity	Power	Footprint (L×W×H)	Ref	Quote
4-Knife	230 kg/h (Size A)	0.5 HP (0.4 kW), 1-phase 220V	1.0 × 1.0 × 0.8 m	TTQ-SHL-01	Quote →
6-Knife	170–190 kg/h	1 HP (0.75 kW), 1-phase 220V	1.5 × 1.0 × 1.7 m	TTQ-SHL-02	Quote →
8-Knife	250–280 kg/h (Size A)	1 HP (0.75 kW), 1-phase 220V	1.5 × 1.2 × 1.8 m	TTQ-SHL-03	Quote →
10-Knife	400–500 kg/h	1 HP (0.75 kW), 1-phase 220V	1.5 × 1.2 × 1.8 m	TTQ-SHL-04	Quote →
16-Head	700 kg/h (Size A)	1 HP (0.75 kW), 1-phase 220V	1.1 × 0.85 × 1.55 m	TTQ-SHL-05	Quote →

Specifications are indicative and configurable; TTQ confirms exact figures against your capacity, grade targets and factory layout. Model codes shown are TTQ quotation references.

On the line

Where it fits in the process

Cutting is the shelling stage — it follows steaming and precedes borma drying. The separated shell is routed to the shell burner for energy recovery.

← Previous stage Automatic Raw Cashew Nut Grading Machine You are hereCashew Nut Cutting Machine Next stage → Cashew Dryer Machine (Borma)

Walk the full 7-step line → Watch the demo

Answers

Cashew Nut Cutting Machine — FAQ

Is cutting the same as shelling?

Yes — cutting is how the automatic shelling stage works: the blade cuts the shell to release the kernel. It is different from peeling, which removes the brown skin later.

Semi-automatic or fully automatic — which should I choose?

Semi-auto stations are lower-cost and flexible for small plants; fully automatic cutting suits high-volume lines targeting 1,200 kg/hr. Many plants run both.

How often do blades need service?

Blades are re-sharpened periodically depending on volume; they are hardened and re-indexable, so full replacement is infrequent.
