Wood Chip Boiler
Biomass steam for the line
A wood-chip (biomass) boiler that raises steam and hot water for steaming, drying and coating — a biomass alternative or complement to the shell burner.
The TTQ Wood Chip Boiler raises steam and hot water from wood chips or biomass to power the steaming, drying and coating stages. It is a biomass energy option where shell alone is insufficient or where steam is preferred, keeping the plant on renewable fuel and off fossil energy. Capacity is matched to the line’s thermal demand.
Technical specifications
| Function | Raises steam / hot water |
|---|---|
| Fuel | Wood chip / biomass |
| Output | Steam + hot water |
| Serves | Steamer, dryer, coater |
| Control | Automatic feed + pressure |
| Build | Steel pressure boiler |
Figures are typical and configurable — we confirm exact specifications against your capacity and grade targets.
Built for yield & uptime
Steam capacity
Raises steam and hot water sized to the line’s thermal demand.
Biomass energy
Runs on renewable wood chip, keeping the plant off fossil fuel.
Automatic feed
Fuel feed and pressure are regulated automatically.
Process heat
Supplies steaming, drying and coating from one source.
Model & capacity comparison
Every model TTQ builds for this stage, side by side. Pick by throughput and footprint — each links straight to a quote.
Steam boilers — models
Steam generation for the steaming stage, sized by steam output. Shell-fired options pair with a cashew-shell burner for near zero fuel cost.
| Model | Capacity | Power | Footprint (L×W×H) | Crew | Ref | Quote |
|---|---|---|---|---|---|---|
| 0.3 T | 300 kg steam/h | 4 HP (3 kW), 3-phase 380V | 2.0 × 2.0 × 3.0 m | 1 | TTQ-BLR-01 | Quote → |
| 0.5 T | 500 kg steam/h | 8 HP (6 kW), 3-phase 380V | 4.0 × 2.0 × 2.5 m | 1 | TTQ-BLR-02 | Quote → |
| 0.5 T (gas) | 500 kg steam/h | 3 HP (2.2 kW), 3-phase 380V | 4.0 × 2.0 × 2.5 m | 1 | TTQ-BLR-03 | Quote → |
| 0.75 T | 750 kg steam/h | 8 HP (6 kW), 3-phase 380V | 4.0 × 2.0 × 2.5 m | 1 | TTQ-BLR-04 | Quote → |
| 1 T | 1,000 kg steam/h | 10 HP (7.5 kW), 3-phase 380V | 4.5 × 2.5 × 3.0 m | 1 | TTQ-BLR-05 | Quote → |
| 1.5 T | 1,500 kg steam/h | 15 HP (11.25 kW), 3-phase 380V | 5.5 × 2.5 × 3.0 m | 1 | TTQ-BLR-06 | Quote → |
| 2 T | 2,000 kg steam/h | 15 HP (11.25 kW), 3-phase 380V | 6.0 × 3.0 × 3.0 m | 1 | TTQ-BLR-07 | Quote → |
| 3 T | 3,000 kg steam/h | — | — | — | TTQ-BLR-08 | Quote → |
| 4 T | 4,000 kg steam/h | — | — | — | TTQ-BLR-09 | Quote → |
Specifications are indicative and configurable; TTQ confirms exact figures against your capacity, grade targets and factory layout. Model codes shown are TTQ quotation references.
Where it fits in the process
A plant utility that supplies steam and hot water to the process — a biomass complement to the shell burner.
Wood Chip Boiler — FAQ
What fuel does the boiler use?
What does it power?
Shell burner or wood-chip boiler?
Pairs well with
Cashew Shell Burner
Turn shell waste into heat
Open →
Cashew Steaming Machine
Soften shells, protect kernels
Open →
Cashew Dryer Machine (Borma)
Controlled borma drying
Open →

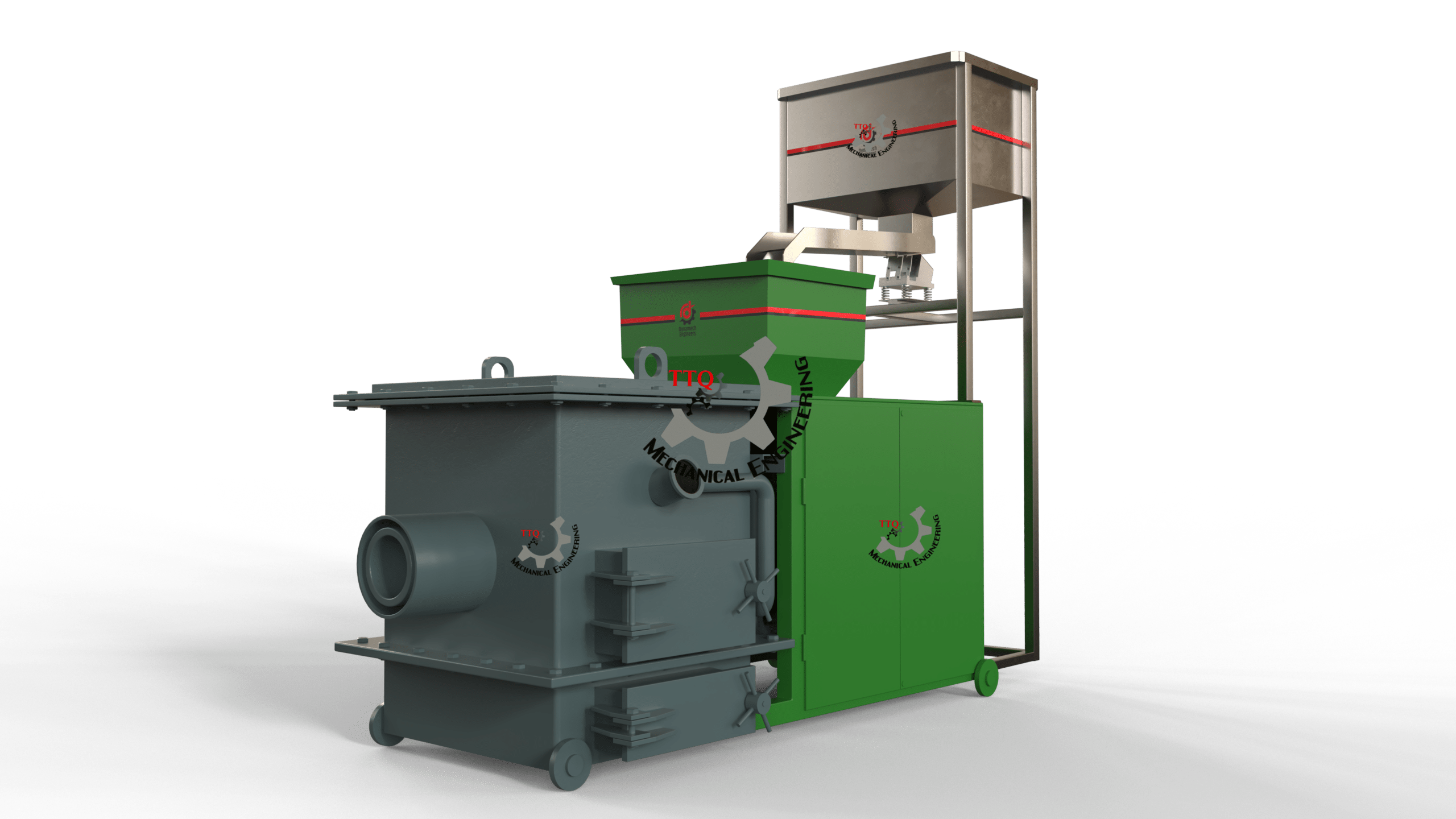

Pellet / Biomass Boiler Price for Cashew Plants
