Cashew Peeling Machine
High whole-kernel yield, dry-peeled
Automatic dry-peeling machines that remove the brown testa skin from dried kernels with gentle air-and-friction action — protecting whole W-grade kernels.
The TTQ Cashew Peeling Machine removes the thin brown skin (testa) from dried cashew kernels using a gentle combination of compressed air and soft friction rollers — a dry-peeling method that avoids the yield loss and hygiene issues of water peeling. Kernels arrive from the dryer at around 3% moisture; the machine peels them at roughly 80–90% first-pass skin removal, and un-peeled kernels are simply recirculated. Dry peeling is what protects the whole-kernel (W180–W450) grades that command the highest export price.
Technical specifications
| Function | Removes testa (brown skin) from kernels |
|---|---|
| Method | Dry peeling — compressed air + soft rollers |
| First-pass peel rate | ~80–90% (balance recirculated) |
| Throughput | 150–600 kg/hr (by model) |
| Drive | 2.2–5.5 kW |
| Air supply | Clean compressed air required |
| Control | Manual or PLC line integration |
| Build | Stainless contact parts, food-safe |
Figures are typical and configurable — we confirm exact specifications against your capacity and grade targets.
Built for yield & uptime
Protects whole grades
Gentle air-and-friction peeling keeps W180–W450 kernels intact for top export prices.
Dry — no water, no soaking
Dry peeling avoids re-wetting kernels, protecting flavour, colour and shelf life.
Recirculating design
Partially peeled kernels loop back automatically for a clean finish without hand-work.
80–90% first pass
A high first-pass peel rate cuts labour and speeds the line to packing.
Model & capacity comparison
Every model TTQ builds for this stage, side by side. Pick by throughput and footprint — each links straight to a quote.

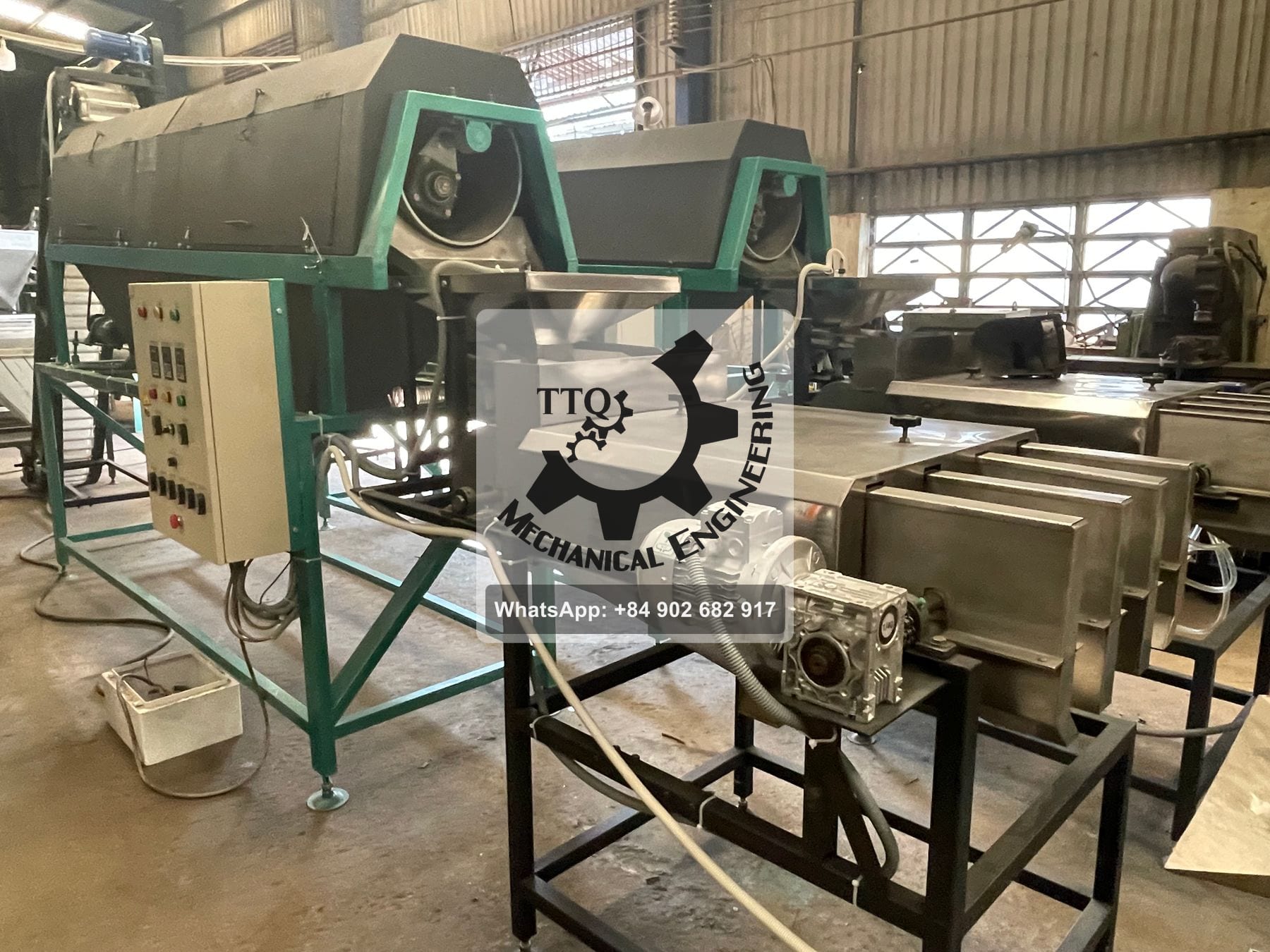

Peeling machines — models
Dry testa (skin) removal by air and gentle friction. Add heads to scale throughput while protecting whole W-grade kernels.
| Model | Capacity | Power | Footprint (L×W×H) | Crew | Ref | Quote |
|---|---|---|---|---|---|---|
| 1-Head | 120–180 kg/h | 5 HP (3.7 kW) | 8.5 × 1.0 × 2.6 m | 1 | TTQ-PEL-01 | Quote → |
| 2-Head | 240–300 kg/h | 5 HP (3.7 kW) | 8.5 × 1.0 × 2.6 m | 1 | TTQ-PEL-02 | Quote → |
| 3-Head | 360–420 kg/h | 5 HP (3.7 kW) | 8.5 × 1.0 × 2.6 m | 1 | TTQ-PEL-03 | Quote → |
| 4-Head | 420–480 kg/h | 5 HP (3.7 kW) | 8.5 × 1.0 × 2.6 m | 1 | TTQ-PEL-04 | Quote → |
Specifications are indicative and configurable; TTQ confirms exact figures against your capacity, grade targets and factory layout. Model codes shown are TTQ quotation references.
Where it fits in the process
Peeling follows drying and precedes kernel grading and colour sorting. Clean, whole peeled kernels are what the grading and packing stages turn into export lots.
Cashew Peeling Machine — FAQ
What is the difference between peeling and shelling?
Is dry peeling better than water peeling?
What peeling rate can I expect?
Pairs well with
Cashew Dryer Machine (Borma)
Controlled borma drying
Open →
Cashew Grading & Sorting Machine
W180 to W450, sorted by size and colour
Open →
Cashew Vacuum Packing Machine
Nitrogen-flush, export shelf life
Open →
Cashew Peeling Machine Price
A cashew peeling machine is typically priced from about USD 5,000 to USD 12,000, depending on throughput and whether it is a manual, semi-automatic or fully automatic dry peeler.
Open →

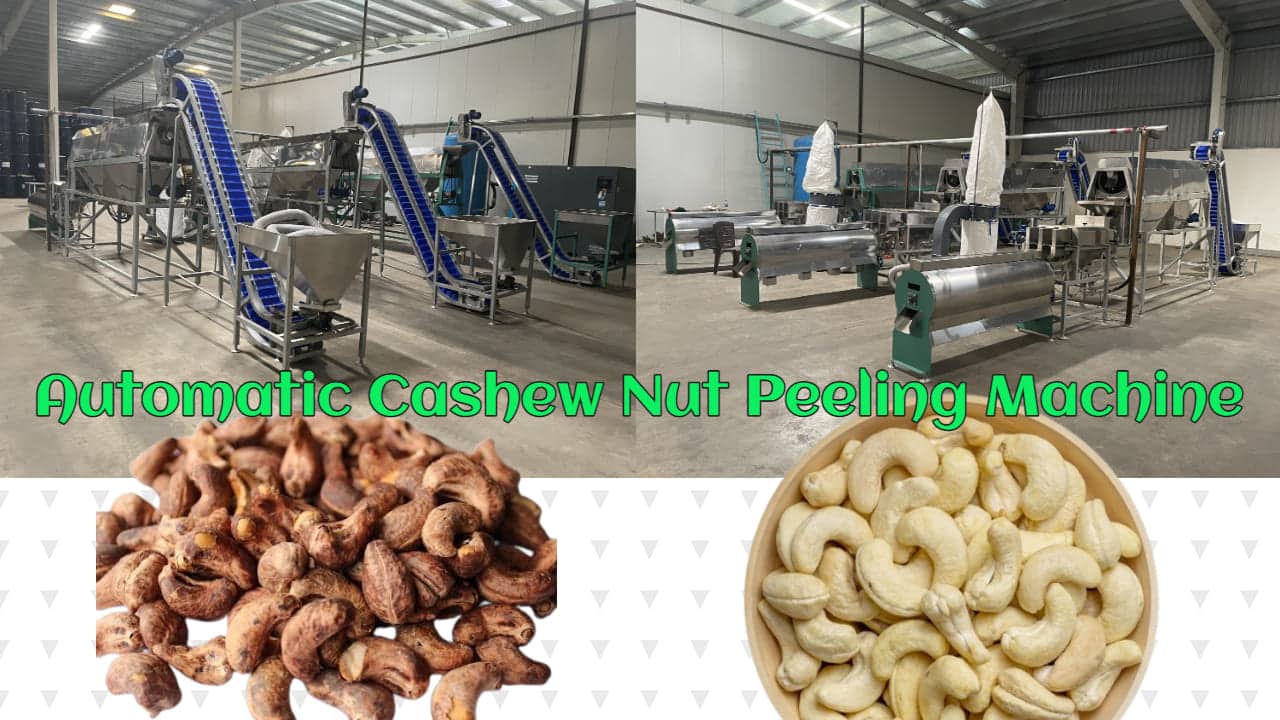

The Cashew Peeling Process
Peeling removes the thin brown testa skin from dried cashew kernels. Dry peeling (air and friction) protects whole-kernel yield far better than water peeling.
Open →Get a quote on the Cashew Peeling Machine
Tell us your target capacity and grades. We'll come back with the right configuration, a layout and a costed proposal.
