Cashew Kernel Humidification Chamber
Condition moisture for clean peeling
A humidification chamber that finely re-conditions kernel moisture after drying — the sweet spot where the skin peels off cleanly without cracking the kernel.
The TTQ Cashew Kernel Humidification Chamber re-conditions the moisture of dried kernels to the narrow window where the testa skin releases cleanly but the kernel stays intact. After borma drying kernels can be brittle; a short, controlled humidification restores just enough moisture — typically a point or two — so peeling maximises whole-kernel yield. It is a sealed chamber with regulated humidity and dwell time.
Technical specifications
| Function | Re-conditions kernel moisture pre-peel |
|---|---|

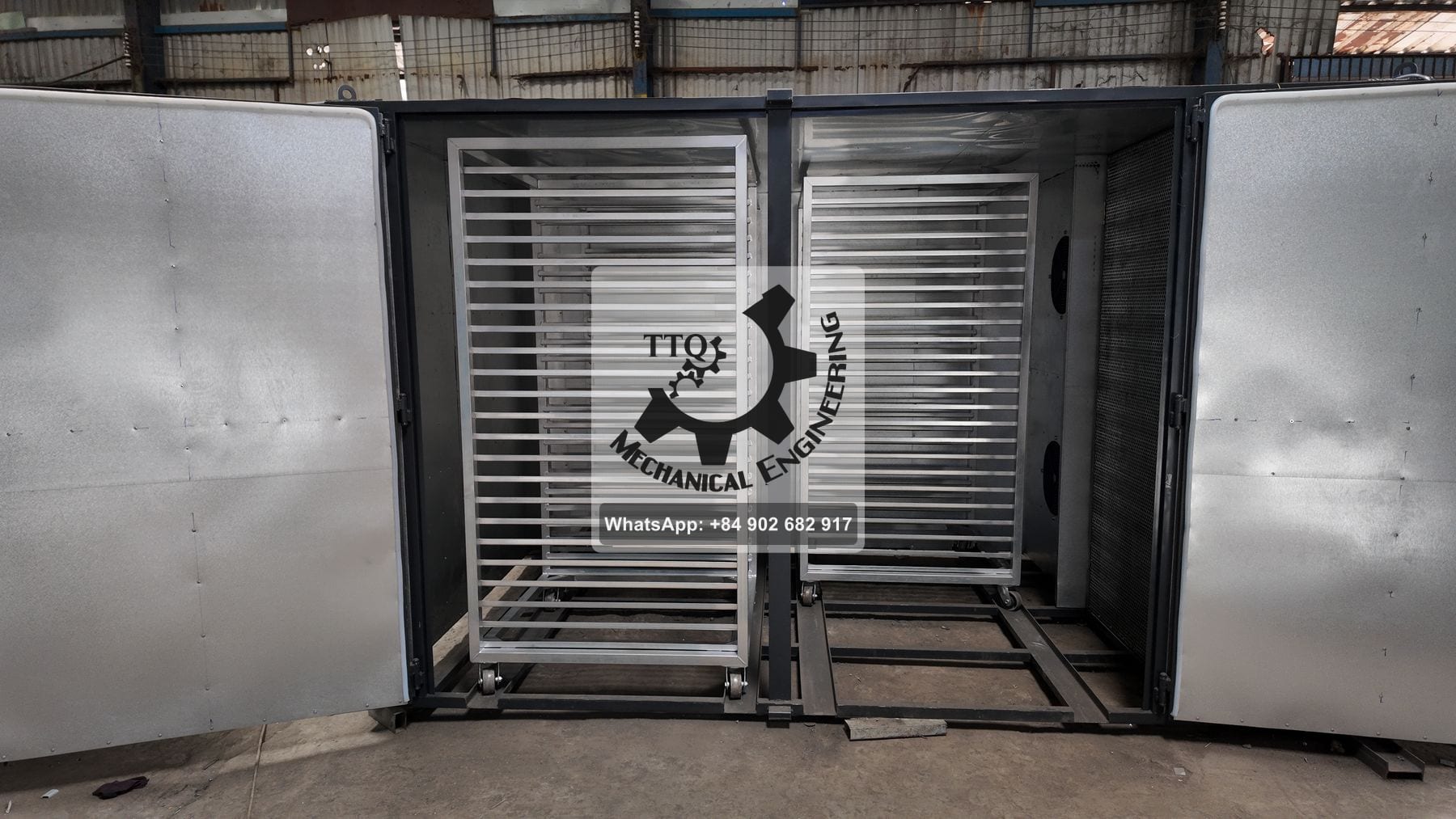

| Type | Sealed humidity chamber |
| Control | Regulated RH + dwell timer |
| Effect | Reduces peeling breakage |
| Capacity | Batch, line-sized |
| Build | Insulated stainless chamber |
Figures are typical and configurable — we confirm exact specifications against your capacity and grade targets.
Built for yield & uptime
Controlled moisture
Restores just enough moisture to loosen the skin without re-wetting the kernel.
Less peeling breakage
Conditioned kernels peel cleanly, protecting whole-kernel grades.
Regulated RH + dwell
Humidity and time are held to a recipe for repeatable conditioning.
Protects wholes
Takes the brittleness out of dried kernels before they reach the peeler.
Model & capacity comparison
Every model TTQ builds for this stage, side by side. Pick by throughput and footprint — each links straight to a quote.
Humidification rooms — models
Re-conditions dried kernels to the ideal moisture for high whole-kernel peeling yield. Batch sizes 0.5 T to 4.5 T.
| Model | Capacity | Power | Footprint (L×W×H) | Cycle | Crew | Ref | Quote |
|---|---|---|---|---|---|---|---|
| 0.5 T | 0.5 T/batch | 1 HP (0.75 kW), 3-phase 380V | 4.5 × 1.3 × 1.8 m | 5–6 h/batch | 1 | TTQ-HUM-01 | Quote → |
| 1 T | 1 T/batch | 1 HP (0.75 kW), 3-phase 220V | 3.5 × 2.2 × 2.2 m | 5–7 h/batch | 1 | TTQ-HUM-02 | Quote → |
| 1.5 T | 1.5 T/batch | 2 HP (1.5 kW), 3-phase 380V | 4.0 × 2.2 × 2.2 m | 5–7 h/batch | 1 | TTQ-HUM-03 | Quote → |
| 2 T | 2 T/batch | 2 HP (1.5 kW), 3-phase 380V, 2 fans | 4.8 × 3.0 × 2.0 m | 3–5 h/batch | 1 | TTQ-HUM-04 | Quote → |
| 4.5 T | 4.5 T/batch | 2 HP (1.5 kW), 3-phase 380V, 2 fans | 4.85 × 3.65 × 2.05 m | 3–5 h/batch | 1 | TTQ-HUM-08 | Quote → |
Specifications are indicative and configurable; TTQ confirms exact figures against your capacity, grade targets and factory layout. Model codes shown are TTQ quotation references.
Where it fits in the process
Sits between drying and peeling: brittle dried kernels are briefly re-humidified to the ideal peeling moisture, then fed to the peeler.
Cashew Kernel Humidification Chamber — FAQ
Why humidify kernels after drying?
How much moisture is added?
Where does it sit on the line?
Pairs well with
Cashew Dryer Machine (Borma)
Controlled borma drying
Open →
Cashew Peeling Machine
High whole-kernel yield, dry-peeled
Open →
Cashew Moisture Meter
Know the moisture, hit the grade
Open →
How Humidity Affects Cashew Peeling
Get the moisture right, peel more wholes
Open →Get a quote on the Cashew Kernel Humidification Chamber
Tell us your target capacity and grades. We'll come back with the right configuration, a layout and a costed proposal.
